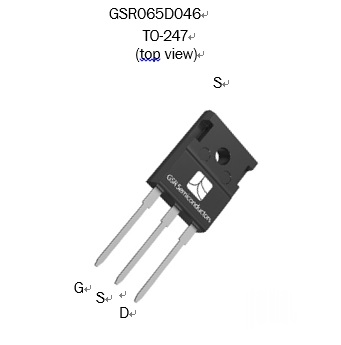

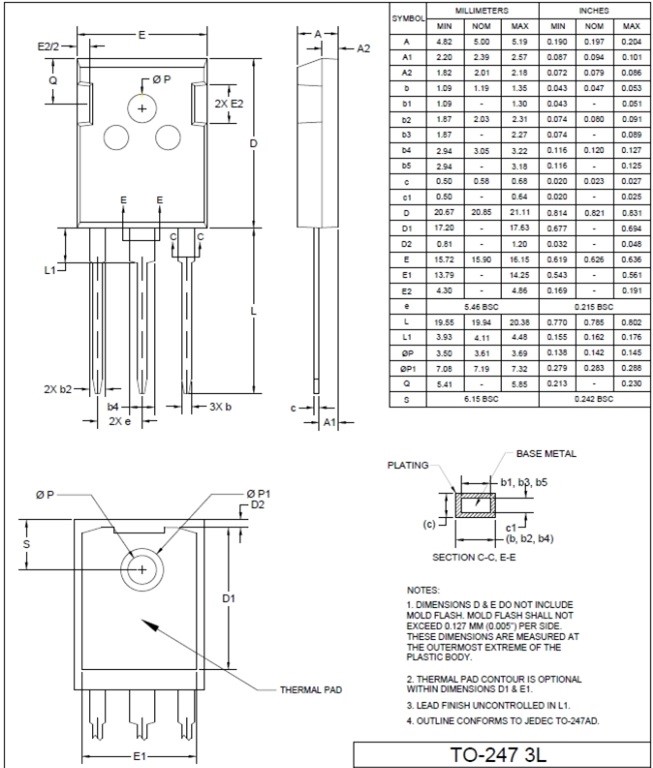

GSR065D046(650V 35mΩ GaN FET)

GSR065D046 650V, 35m Ω GaN FET is a normally closed device using GSR Semiconductors Gen IV platform. It provides superior reliability and performance by combining the most advanced high-voltage GaNHEMT with low-voltage silicon MOSFETs. The Gen IV platform uses advanced epitaxial and patented design technologies to simplify manufacturability, while improving device efficiency by reducing gate charge, output capacitance, cross loss and reverse recovery charge.

Gallium nitride chip Gallium nitride GaN chip Third generation semiconductor Jinshajiang Semiconductor
Detail DataSheet

Product introduction

GSR065D046650V, 35m Ω GaN FET; GSRSemicatorsGenIV; Normally off device of the platform. It combines the most advanced high-voltage GaNHEMT  With low-voltage silicon MOSFET to provide excellent reliability and performance.

GenIV  The platform uses advanced epitaxy and patented design technology to simplify manufacturability, while improving device efficiency by reducing gate charge, output capacitance, cross loss and reverse recovery charge.

Product characteristics

• GaN technology certified by JEDEC

•  Production test of dynamic on resistance

•  Robust design, defined as

—  Wide gate safety margin

—  Transient overvoltage capacity

•  Enhanced surge current capability

•  Very low QRR

•  Cross loss reduction


Product benefits

•  Enable totem column bridgeless PFC design

—  Increase power density

—  Reduce system size and weight

—  Lower overall system cost

Product benefits

•  Improve the efficiency of hard switching and soft switching circuits

•  Easy to use Common grid drivers are easy to drive

•  GSD pin layout improves high-speed design


• Data communication

• Wide range of industrial applications

• PV inverter

• Servo motor application


Key Specifications
VDSS (V) 650
VDSS(TR)(V)  800
RDS(on)eff  (mΩ) max* 41
QRR (nC) typ 150
QG (nC) typ 22

Absolute Maximum Ratings (Tc=25°C unless otherwise stated.)

Symbol Parameter Limit Value Unit
VDSS Drain to source voltage (TJ = -55°C to 150°C) 650 V
VDSS(TR) Transient drain to source voltage a 800
VGSS Gate to source voltage   ±20
PD Maximum power dissipation @TC=25°C 156
ID   Continuous drain current @TC=25°C b46.5
 Continuous drain current @TC=100°C b29.5
IDM Pulsed drain current (pulse width: 10µs) 240
TC Operating temperature Case  -55 to +150 °C
TJ Junction  -55 to +150 °C
TS Storage temperature -55 to +150 °C
TSOLD Soldering peak temperature c 260 °C


  1. In off-state, spike duty cycle D<0.01, spike duration <30µs, none repetitive.
  2. For increased stability at high current operation, see Circuit Implementation on page 3
  3. For 10 sec., 1.6mm from the case


Electrical Parameters (TJ=25°C unless otherwise stated)

Symbol Parameter Min Typ Max Unit Test Conditions
Forward Device Characteristics
VDSS(BL) Drain-source voltage 650 — — VGS=0V
VGS(th) Gate threshold voltage 3.3 4.8 VDS=VGS, ID=1mA
ΔVGS(th)/TJ Gate threshold voltage temperature coefficient — -6.5 — mV/°C
RDS(on)eff  Drain-source on-resistance a   — 35 41 mΩ VGS=10V, ID=30A
  — 72 —  VGS=10V, ID=30A, TJ=150°C
IDSS  Drain-to-source leakage current — 30 µA VDS=650V, VGS=0V
  — 20 —  VDS=650V, VGS=0V, TJ=150°C
IGSS  Gate-to-source forward leakage current — — 400 nA VGS=20V
 Gate-to-source reverse leakage current — — -400  VGS=-20V
CISS Input capacitance — 1500 — pF VGS=0V, VDS=400V, f=1MHz
COSS Output capacitance — 147 —
CRSS Reverse transfer capacitance — —
CO(er) Output capacitance, energy related b — 220 — pF VGS=0V, VDS=0V to 400V
CO(tr)  Output capacitance, time related c — 380 —
QG Total gate charge — 22 — nC   V DS=400V, VGS=0V to 10V, ID=32A
QGS Gate-source charge — 8.4 —
QGD Gate-drain charge — 6.6 —
QOSS Output charge — 150 — nC   VGS=0V, VDS=0V to 400V
tD(on) Turn-on delay — 60 — ns

VDS=400V, VGS=0V to 12V,

RG=30, ID=32A, ZFB=240Ω at

100MHz (See Figure 15)

tR Rise time — 10 —
tD(off) Turn-off delay — 94 —
tF Fall time — 10 —
Eoff Turn off Energy — 82 — J

VDS=400V, VGS=0V to 12V,

RG=30, ID=32A, ZFB=180Ω at

Eon Turn on  Energy — 206 — J 100MHz


  1. Dynamic on-resistance; see Figures 19 and 20 for test circuit and conditions
  2. Equivalent capacitance to give same stored energy as VDS rises from 0V to 400V
  3. Equivalent capacitance to give same charging time as VDS rises from 0V to 400V

Electrical Parameters (TJ=25°C unless otherwise stated)

Symbol Parameter Min Typ Max Unit Test Conditions
Reverse Devi ce Characteristics
IS Reverse current — — 29.5 V GS=0V, TC=100°C ≤25% duty cycle
VSD  Reverse voltage a — 1.8 — VGS=0V, IS=32A
  — 1.3 —  VGS=0V, IS=16A
tRR Reverse recovery time — 59 — ns IS=32A, VDD=400V,  di/dt=1000A/s
QRR Reverse recovery charge — 150 — nC
(di/dt)RM Reverse diode di/dt b — — 3200 A/µs Circuit implementation and parameters on page 3


  1. Includes dynamic RDS(on) effect

Reverse conduction di/dt will not exceed this max value with recommended RG.
