Summary

GSR065D34

GSR065D034 650V, 50 m Ω GaN FET is a normally closed device. It provides superior reliability and performance by combining the most advanced high-voltage GaNHEMT with low-voltage silicon MOSFETs. Advanced epitaxy and patented design technology are used to simplify manufacturability, and device efficiency is improved by reducing gate charge, output capacitance, cross loss and reverse recovery charge.

Gallium nitride chip Third generation semiconductor Jinshajiang semiconductor semiconductor chip GaN chip
Detail DataSheet

brief introduction

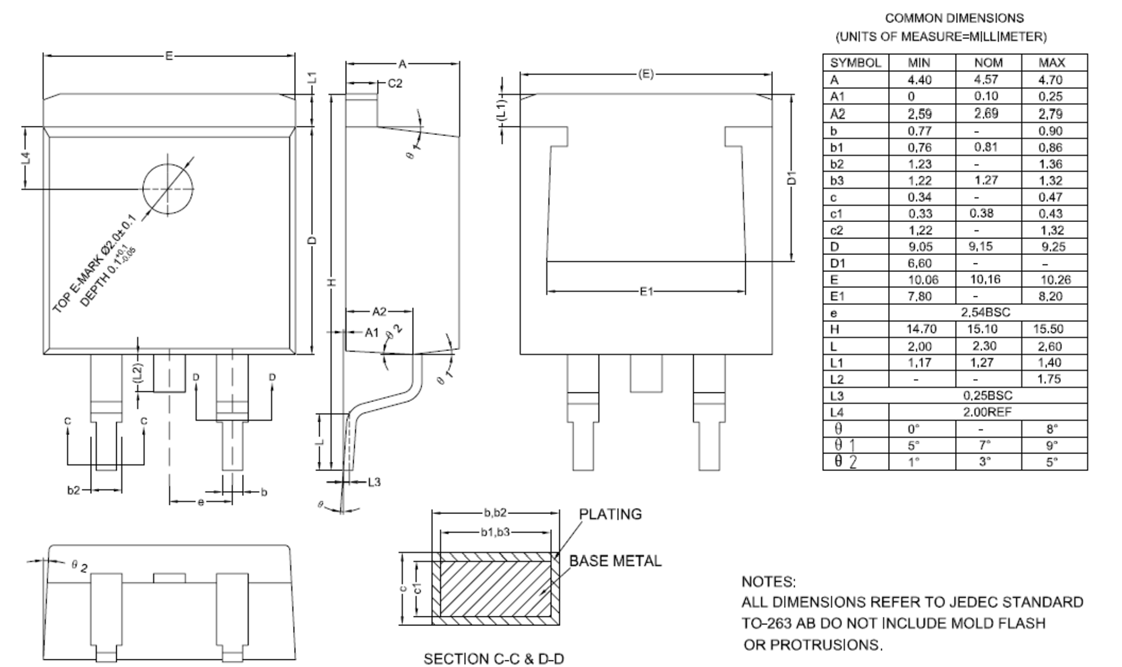

GSR065D34(650VSuperGaN ® FETinTO-263)

GSR065D034650V、50mΩ  Gallium nitride (GaN) FET; It is a normally closed device. It combines the most advanced high-voltage GaNHEMT  With low-voltage silicon MOSFET to provide excellent reliability and performance.

Advanced epitaxy and patented design technology are used to simplify manufacturability, and device efficiency is improved by reducing gate charge, output capacitance, cross loss and reverse recovery charge.



Product characteristics

  • GaN technology certified by JEDEC
  • Production test of dynamic on resistance
  • Robust design, defined as
    • Wide gate safety margin
    • Transient overvoltage capacity
  • Enhanced surge current capability
  • Very low QRR
  • Cross loss reduction



Product benefits

  • Enable totem column bridgeless PFC design
    • Increase power density
    • Reduce system size and weight
    • Lower overall system cost
  • Improve the efficiency of hard switching and soft switching circuits
  • Easy to use Common grid drivers are easy to drive
  • GSD pin layout improves high-speed design



application

  • data communication
  • Wide range of industrial applications
  • PV inverter
  • Servo motor application
  •
Key Specifications
VDSS (V) 650
VDSS(TR)(V)  800
RDS(on)eff  (mΩ) max* 60
QRR (nC) typ 120
QG (nC) typ 16



Absolute Maximum Rating;(Tc=25 ° C  unless otherwise stated)

Symbol Parameter Limit Value Unit
VDSS Drain to source voltage (TJ = -55°C to 150°C) 650 V
VDSS(TR) Transient drain to source voltage a 800
VGSS Gate to source voltage   ±20
PD Maximum power dissipation @TC=25°C 119
ID   Continuous drain current @TC=25°C b34

 Continuous drain current @TC=100°C b22
IDM Pulsed drain current (pulse width: 10µs) 150
TC Operating temperature Case  -55 to +150 °C
TJ Junction  -55 to +150 °C
TS Storage temperature -55 to +150 °C
TSOLD Soldering peak temperature c 260 °C

Notes:

  1. In off-state, spike duty cycle D<0.01, spike duration <30µs, non repetitive
  2. For increased stability at high current operation, see Circuit Implementation on page 3
  3. Reflow MSL3



Thermal Resistance

Symbol  Parameter Maximum Unit
RΘJC Junction-to-case  1.05 °C/W
RΘJA Junction-to-ambient  40 °C/W



Electrical Parameters (TJ=25°C unless otherwise stated)

Symbol Parameter Min Typ Max Unit Test Conditions
Forward Device Characteristics
VDSS(BL) Drain-source voltage 650 — — VGS=0V
VGS(th) Gate threshold voltage 3.3 4.8 VDS=VGS, ID=0.7mA
ΔVGS(th)/TJ Gate threshold voltage temperature coefficient — -6.2 — mV/°C
RDS(on)eff  Drain-source on-resistance a   — 50 60 mΩ VGS=10V, ID=22A
— 105 — VGS=10V, ID=22A, TJ=150°C
IDSS  Drain-to-source leakage current — 40 µA VDS=650V, VGS=0V
— 15 — VDS=650V, VGS=0V, TJ=150°C
IGSS  Gate-to-source forward leakage current — — 100 nA VGS=20V
— — -100 VGS=-20V
CISS Input capacitance — 1000 — pF VGS=0V, VDS=400V, f=1MHz
COSS Output capacitance — 110 —
CRSS Reverse transfer capacitance — —
CO(er) Output capacitance, energy related b — 164 — pF VGS=0V, VDS=0V to 400V
CO(tr)  Output capacitance, time related c — 280 —
QG Total gate charge — 16 24 nC V DS=400V, VGS=0V to 10V, ID=22A
QGS Gate-source charge — —
QGD Gate-drain charge — —
QOSS Output charge — 120 — nCVGS=0V, VDS=0V to 400V
tD(on) Turn-on delay — 49.2 — ns

VDS=400V, VGS=0V to 10V,

ID=22A, Rg=45Ω, ZFB=240Ω at 100MHz (See Figure 14)

tR Rise time — 11.3 —
tD(off) Turn-off delay — 88.3 —
tF Fall time — 10.9 —

Notes:

  1. Dynamic on-resistance; see Figures 17 and 18 for test circuit and conditions
  2. Equivalent capacitance to give same stored energy as VDS rises from 0V to 400V
  3. Equivalent capacitance to give same charging time as VDS rises from 0V to 400V


Electrical Parameters (TJ=25°C unless otherwise stated)

Symbol Parameter Min Typ Max Unit Test Conditions
Reverse Devi ce Characteristics
IS Reverse current — — 22 V GS=0V, TC=100°C,  ≤25% duty cycle
VSD  Reverse voltage a — 2.2 2.6 VGS=0V, IS=22A

  — 1.6 1.9  VGS=0V, IS=11A
tRR Reverse recovery time — 50 — ns IS=22A, VDD=400V

QRR Reverse recovery charge — 120 — nC
(di/dt)RM Reverse diode di/dt b — — 2500 A/µs Circuit implementation and parameters on page 3



Notes:

Includes dynamic RDS(on) effect

Reverse conduction di/dt will not exceed this max value with recommended RG.
