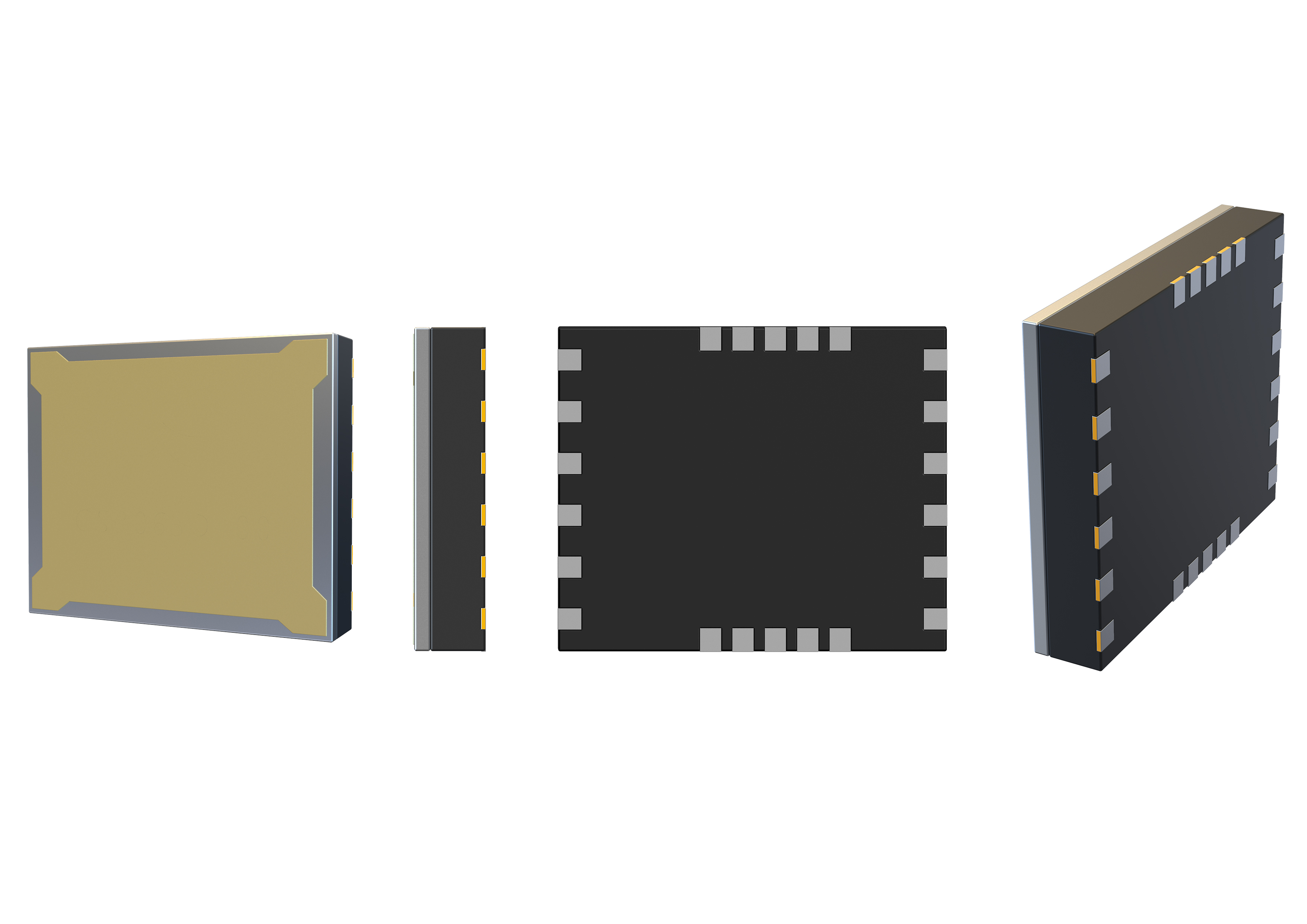

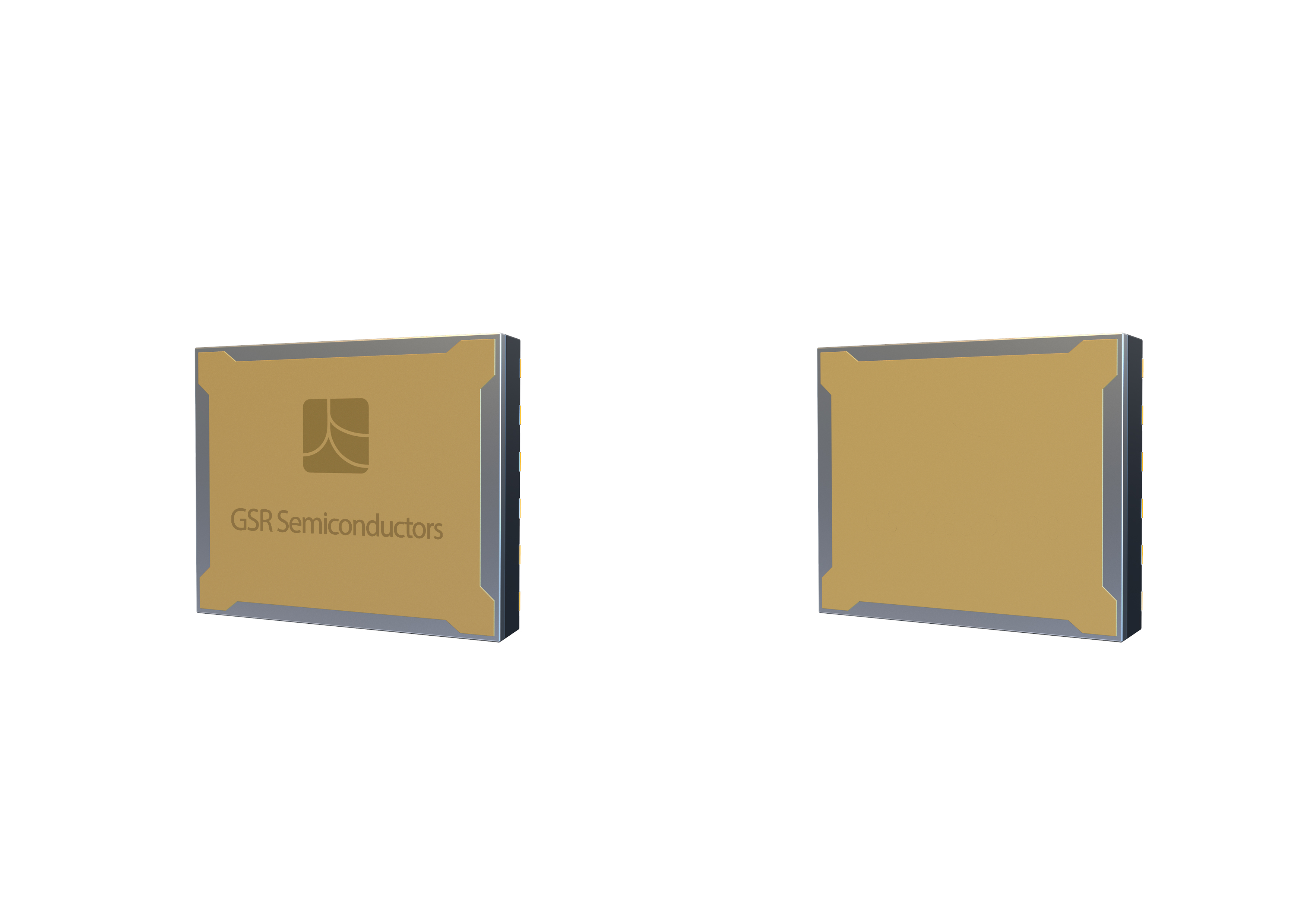

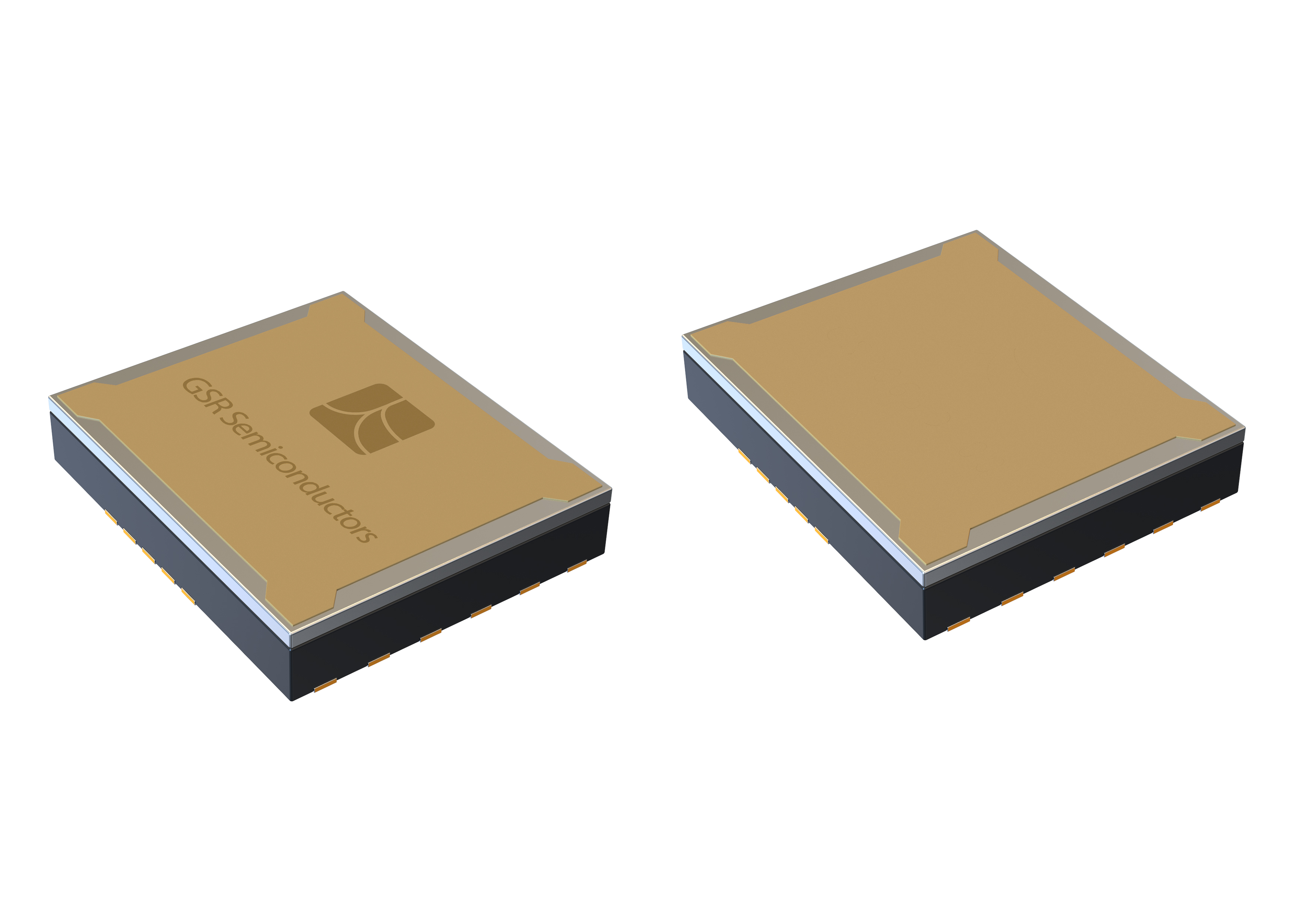

GSR065D100

The D3GaN (direct drive D-mode) GSR065D100A power switch integrates the patented high-density horizontal GaN power transistors into the normally closed products with extremely low RDS (ON) and abnormally high switching performance. D3GaN technology is integrated in an independent high power SMD package, which is very effective in applications requiring high power and efficiency, low volume and cost. It is small in size and low in cost. The integrated safety function ensures the safe operation of the system during startup and shutdown without affecting the switching performance of GaN transistors.

Third generation semiconductor GaN chip High power GaN chip GaN chip High cost performance
Detail DataSheet

Product introduction

GSR065D100 (direct drive D-mode)

D3GaN (direct drive D-mode) GSR065D100A power switch will be patented high-density horizontal GaN; The power transistor is integrated to have a very low; RDS(ON)  And abnormal high efficiency switching performance. D3GaN technology is integrated in an independent high power SMD package, which is very effective in applications requiring high power and efficiency, low volume and cost. It is small in size and low in cost. The integrated safety function ensures the safe operation of the system during startup and shutdown without affecting GaN  Switching performance of transistors.



  • Ultra fast switching
  • Kelvin Connection
  • Normally off
  • High power density
  • Fully isolated package (2.5KV)
  • High threshold voltage
  • By standard 15VMOSFET;
  • Top cooling

application

  • Solar inverter
  • AC and DC power supply
  • alternating current dynamo
  • Battery charger
  • automobile
  • Laser driver

Key Performance Parameters

ParameterValue
VDS(V)650
RDS(ON)(mΩ)22
QG(nC)41
ID,pulse(A)250
ID(A)100

Electrical parameters(Tc=25 º C  unless otherwise stated)



Parameter



Symbol

Values



Unit



Conditions

MinTypicalMax
ContinuousdraincurrentID

-

-

-

-

100

80

A

TC=25°C

TC=100°C

Pulseddraincurrent1)ID,pulse--250A
Gatesourcevoltage2)VGS-25-+6V

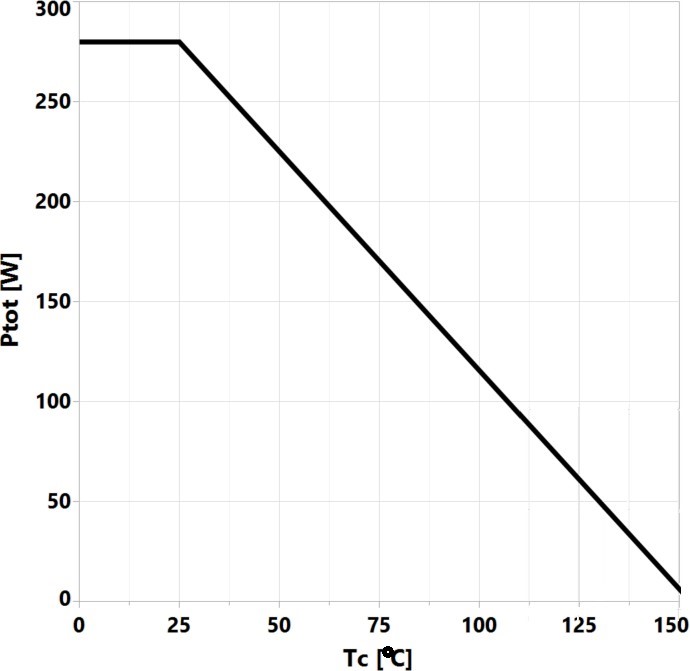

PowerdissipationPTOT--278W



Operatingandstoragetemperature

Tj,Tstg-55-+150



°C


TC--+150
ContinuousreversecurrentIs--100A
Reversepulsecurrent1)Is,pulse--250A
Thermalcharacteristics



Parameter



Symbol

Values



Unit



Conditions

MinTypicalMax
Thermalresistance,junction-case



RθJC



-



-



0.3



  • C/W

Junction totopthermal

pad

Thermalresistance,junction-

ambient

RθJA--65
  • C/W


Solderingpeakbody

temperature

Tp--260°C

Timewithin5°Cfrompeak

solderingtemperature

tc  30S
Param(25 C)
ParameterSymbolValuesUnitConditions
MinTypicalMax
Static
Drain-sourcebreakdownvoltageV(BR)DS650-800VVGS=-15V,Id=1mA
Gatethresholdvoltage1)2)Vth6.36.88.7VID=1mA,VDD=15V



Drainsourceleakagecurrent1)



IDSS

-2060



µA

VGS=-15V

VDS=650VTj=25°C

-75200VGS=-15VVDS=650VTj=150°C
GaNGateleakagecurrentIGSS-0.01200uAVDS=400VVGS=-15V
GateresistanceRG-1.4-f=1Mhz



Drain-sourceonstateresistance



RDS(ON)

-2227



mΩ

VG=15V ID=35ATj=25°C
-4252

VG=15VID=35A

Tj=150°C

Reversevoltagedrop-GaNnonconductive



VR

--7.5



V

ID=10ATj=25°C
--9.5ID=10ATj=150°C
Reversevoltagedrop-GaNconductive



VR

--0.2



V

ID=10ATj=25°C
--0.4ID=10ATj=150°C
Reverserecoverytimetrr--0ns
ReverserecoverychargeQrr--0nC
OutputChargeQoss--171nCVG=0VVDS=400V
Activationsignal2)V(As,En)-0-VVDD=-15V
Dynamic
InputcapacitanceCiss-760800



pF

f=1MHzVG=0VVDS=400V
OutputcapacitanceCoss-200240
ReversetransfercapacitanceCrss-2630
EffectiveOutputCapacitance,EnergyRelatedCO(ER)--278pF

VG=0V

VDS=0to400V

Turn-ondelaytime3)td(on)-9-





ns

VDS=400VVG=0-15V

3)Rcon=100Ω

3)Rcoff=20Ohm

ID=35A

Falltime3)tf-10.8-
Turn-offdelaytime3)td(off)-15.5-
Risetime3)tr-6.5-
  1. After applying the activation signal
  2. Refers to driver GND, see typical working circuit& nbsp; The threshold voltage is defined as Vth=VDD+Vth GaN=15V-8.2V=6.8V
  3. Control resistance in the slew rate push/pull circuit. Rcoff -  in series with Schottky diode; See Figure 10




Param(Tc=25ºC)



Parameter



Symbol

Values



Unit



Conditions

MinTypicalMax
Gatechargecharacteristics
Gatetosourcecharge1)QGS-4.3-



nC





VGS          V2)=0to10V

VDS=400VID=30A

Gatetodraincharge1)QGD-33-
Totalgatecharge1)QG-41-
Gateplateauvoltage1)Vplateau6-7V
CasetodrainCapacitance
CapacitanceCC-20-pF@1 MHz     0.1VRMS



Pin Detail
ParameterSymbolValuesUnitConditions
MinTypicalMax
Pin1Activationsignal2)
DisablevoltagePin10-9.1VVDS=400V
EnablevoltagePin19.31515
Pin2Comsignal3)
VoltageatdisablemodePin2 8



V

VDS>20V
VoltageatEnablemodePin2000.1V31=Id*0.002
Pin3Gate2)

GateVoltagefornon-Conducting

mode

Pin30-4.5VVDS=400V
GateVoltageforconductingmodePin35.5-12
Pin4ComPower2)
 Pin4101515V

Pin5Enablemustbeconnectedtopin1
  1. After applying the activation signal
  2. Refer to driver GND, see typical working circuit
  3. Source pin
